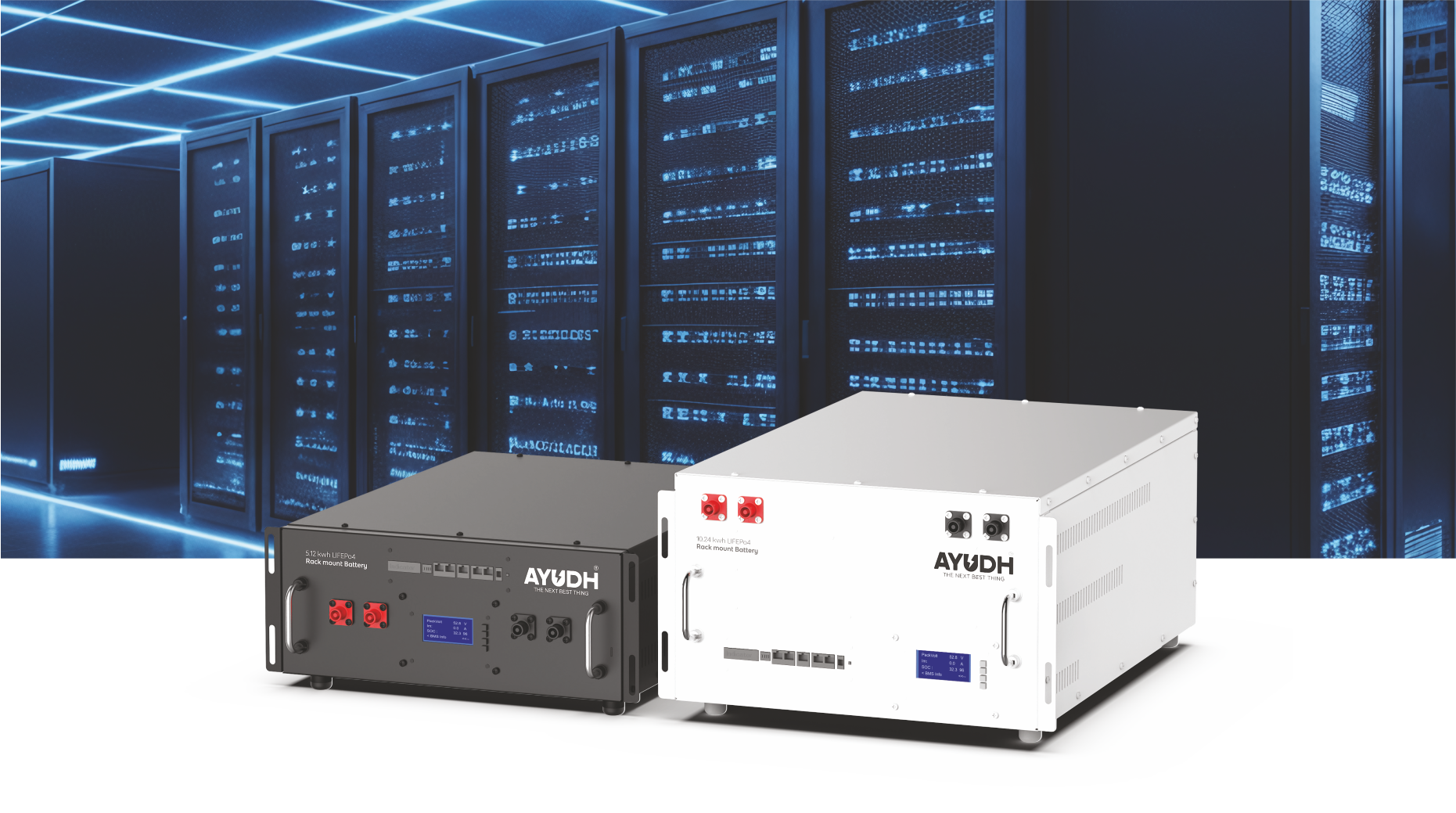

Stackable Batteries
Your website is like your digital handshake it’s the first thing people notice about you online. Our Web Design & Development services are all about making that handshake firm, friendly, and unforgettable.
| Model | 51.2V100Ah | 51.2V200Ah | 51.2V300Ah | 51.2V400Ah | 51.2V500Ah | 51.2V600Ah |
|---|---|---|---|---|---|---|
| Number of Layers | 1 Layer | 2 Layer | 3 Layer | 4 Layer | 5 Layer | 6 Layer |
| Energy | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh | 25.60kWh | 37.72kWh |
| Dimension (L*W*H)mm | ||||||
| Nominal Voltage | 51.2V | |||||
| Nominal Capacity | 100Ah | |||||
| Nominal Energy | 5.12kWh | |||||
| Cell Type | LiFePO4 | |||||
| Combination Mode | 16S1P | |||||
| BMS Configuration | 16S100A | |||||
| Operating Voltage Range | 41.6V ~ 57.6V | |||||
| Standard Charge Current | 20A 0.2C | |||||
| Maximum Continue Charge Current | 50A 0.5C | |||||
| Standard Discharge Current | 50A 0.5C | |||||
| Maximum Continue Discharge Current | 100A 1C | |||||
| Cut-Off Charge Voltage | 41.6V | |||||
| Cut-Off Discharge Voltage | 57.6V | |||||
| Weight | 43Kg | |||||
| Dimension (L×W×H)mm | 442 × 485 × 178mm | |||||
| Power Cable Outlet Mode | Front | |||||
| Cycle Life | ≥3000 / 6000 Cycle, 80%DOD, 25°C | |||||
| Case Material | Metal | |||||
| Cooling Type | Natural Cooling | |||||
| Operating Temperature | Charging: 0°C ~ 50°C / Discharge: -20 ~ 60°C | |||||
| Relative Humidity | 10% ~ 95% RH | |||||
| Storage Temperature | < 3 Month -10°C ~ 25°C | |||||
| Installation Mode | Rack Mounting | |||||
| Remote Data | Bluetooth | |||||
| Communication Mode | CAN, RS485, RS232 | |||||
